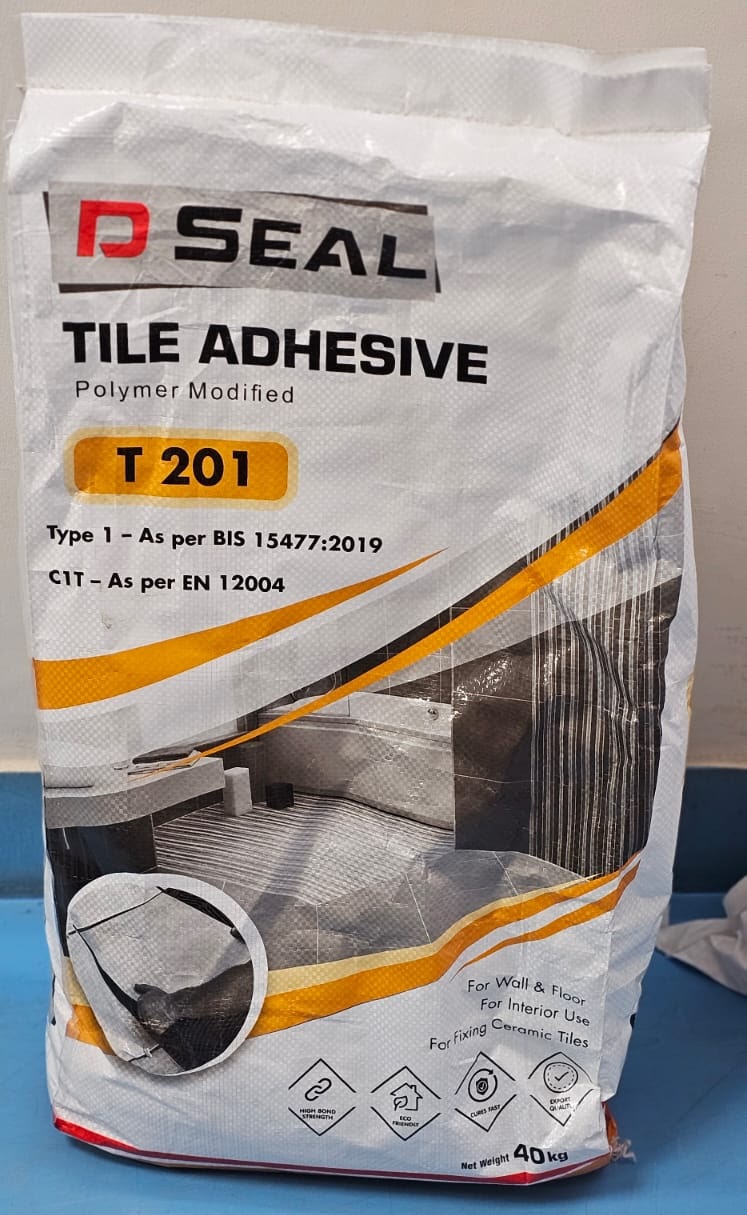

• Product Name: Dseal T-201 Thin Set Adhesive, Dseal tile adhesive

• Description: Factory-made cementitious polymer-modified adhesive designed for fixing ceramic and clay tiles of small format. Intended for interior use only.

• Applications:

  • Suitable for both floor and wall applications.

  • Specifically recommended for dry areas over cementitious surfaces.

  • Ideal for use in green buildings.

• Substrates:

  • Suitable for fixing ceramic tiles in interior applications.

  • Applicable to dry areas over cement mortar beds and cement plasters.

Please note that this adhesive is not recommended for wet or exterior areas. If you have any further questions, feel free to ask! 😊

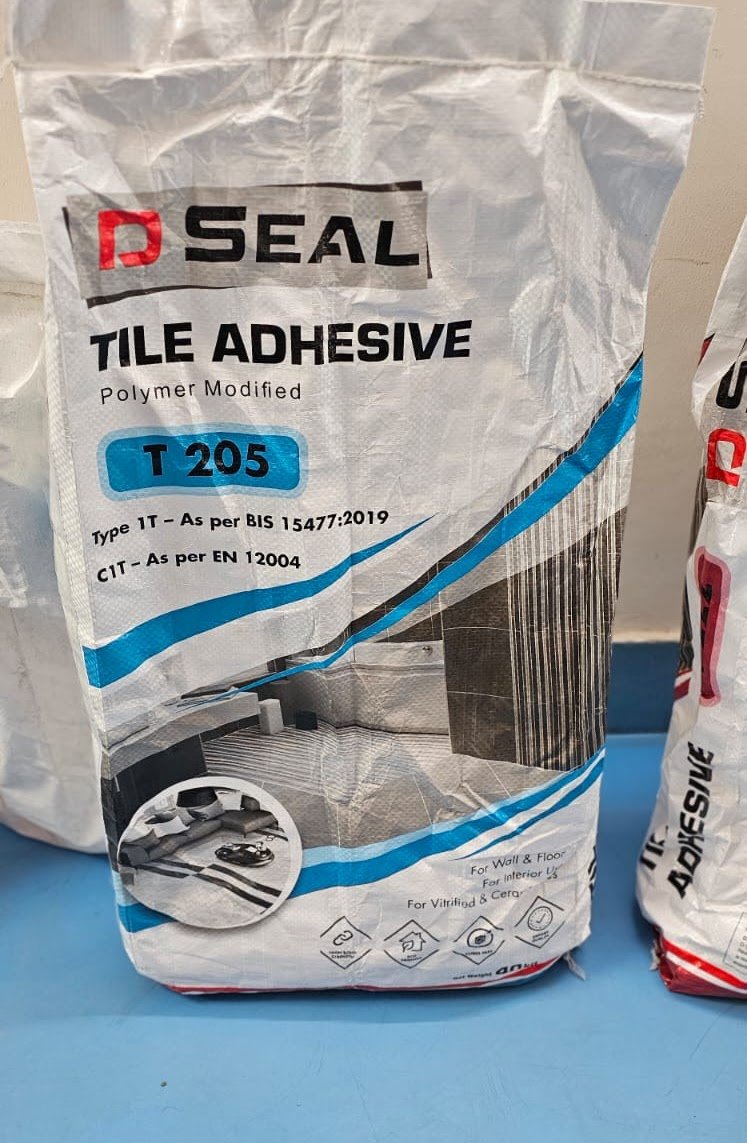

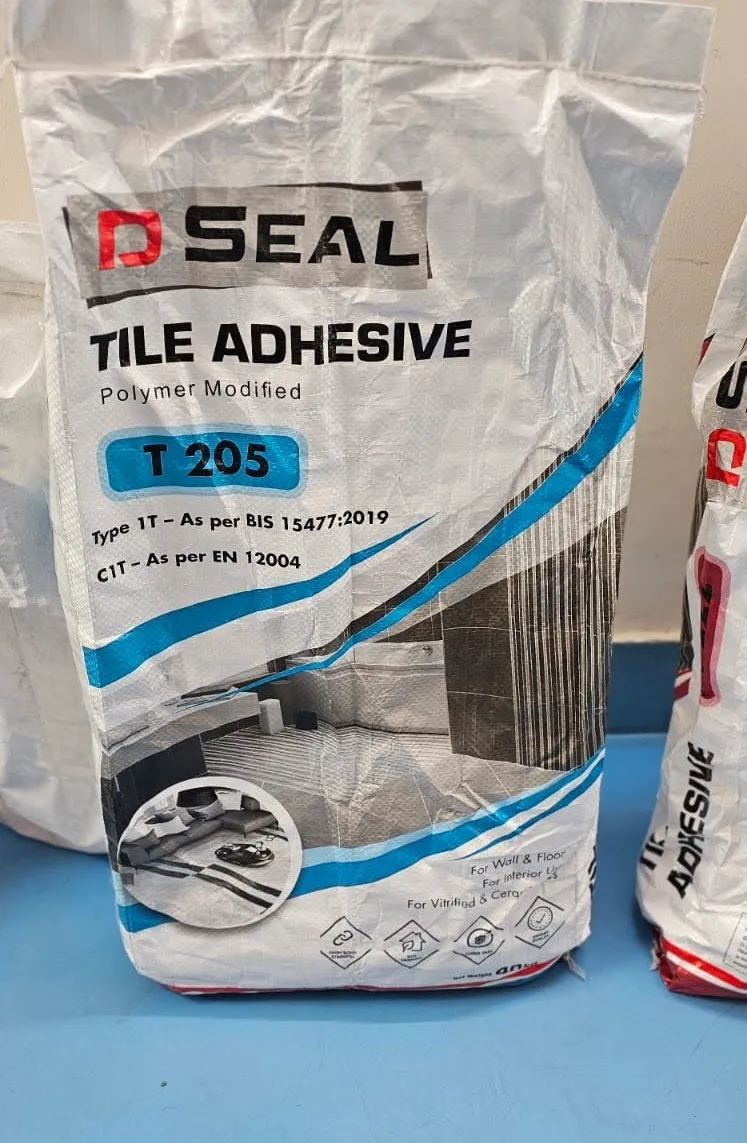

• Product Name: Dseal Tile adhesive 205 Floor & Wall Adhesive

• Description: A smooth and creamy polymer-modified tile adhesive designed for fixing small and medium-format ceramic tiles, small-format vitrified tiles (up to 4 sq ft), and small-sized natural stones on both walls and floors. Suitable for indoor dry area applications only.

• Applications:

  • Ideal for indoor applications on both floors and walls.

  • Specifically recommended for dry areas over cement mortar beds, cement plasters, and cement terrazzo.

• Features:

  • Ready to use: Simply add water on-site.

  • High bond strength, making it suitable for tile-on-tile applications on floors.

  • Easy mixing and application.

  • Consistent quality with a smooth and creamy texture.

Please note that this adhesive is intended for indoor use only and should not be used in wet or exterior areas. If you have any further questions, feel free to ask! 😊

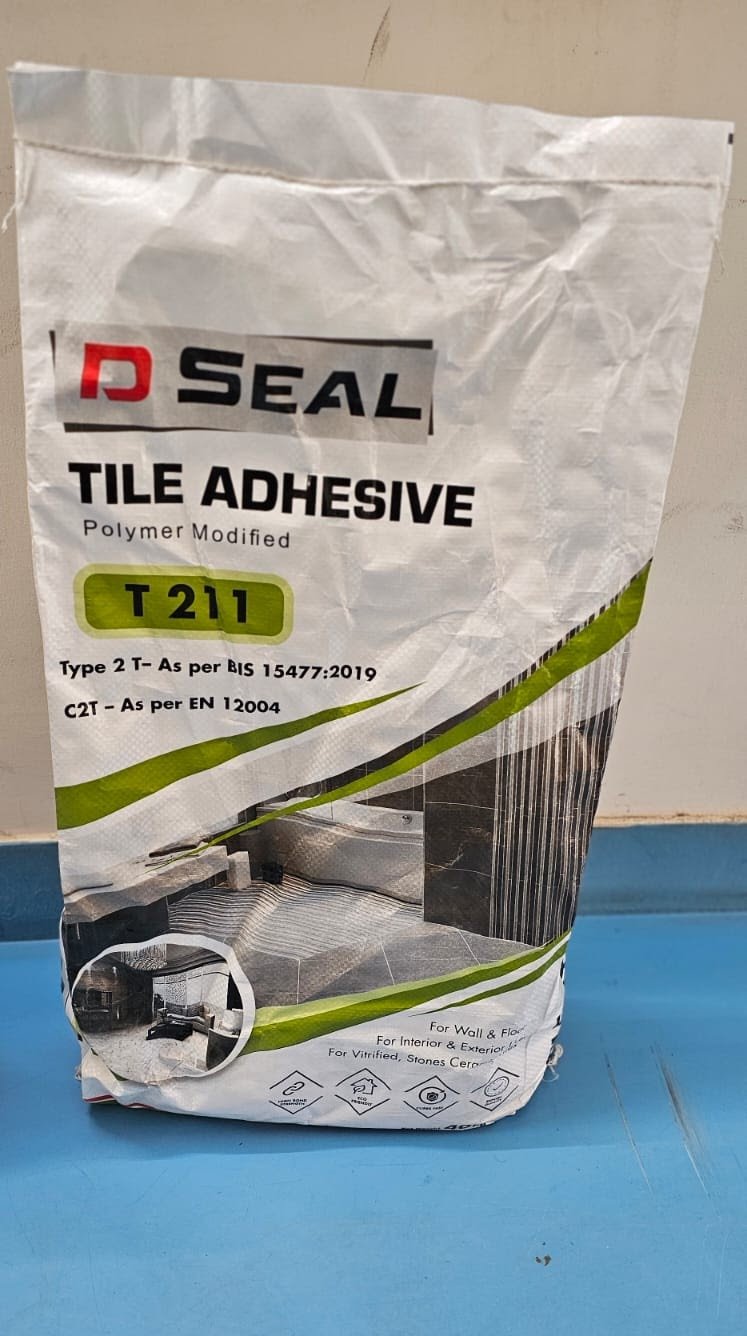

• Product Name: Dseal Tile adhesive 211 Premium Wall & Floor Adhesive

• Description: A high polymer-modified thin-set tile adhesive designed for fixing all types of ceramic and vitrified tiles (up to 8 sq ft) on both walls and floors. It is also suitable for small-sized natural stones on floors and walls over cementitious substrates. Intended for indoor dry and wet area applications only. For improved performance, it can be used with UAT 666 Admix.

• Applications:

  • Suitable for outdoor applications on both floors and walls.

  • Also recommended for indoor applications in wet areas.

  • Applicable over cement mortar beds, cement plasters, cement terrazzo, concrete walls, and masonry.

  • Ideal for tile-on-tile applications on floors.

• Features:

  • Ready to use: Simply add water on-site.

  • High bond strength.

  • High non-sag property.

  • Easy mixing and application.

  • Consistent quality.

  • Self-curable.

  • Smooth and creamy texture.

Please note that this adhesive is not suitable for areas with continuous water exposure (such as swimming pools) and should be used only in indoor wet areas. If you have any further questions, feel free to ask! 😊

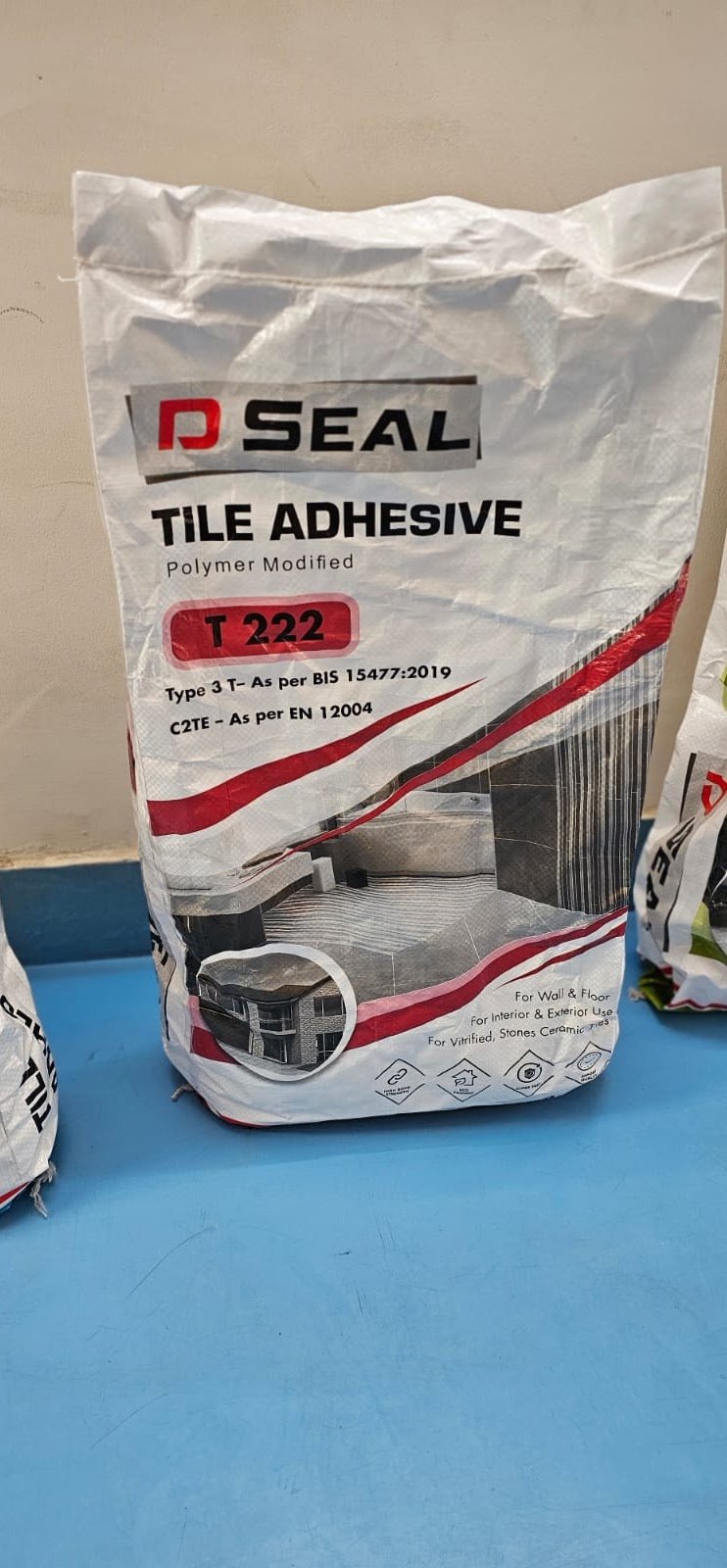

• Product Name: Dseal Tile adhesive T-222 Wall & Floor MFT Adhesive

• Description: A multipurpose high-performance polymer-modified, fibre-reinforced cementitious tile adhesive designed for the installation of medium and large-format ceramic, vitrified tiles, glass mosaics, terrazzo, and natural stones (up to 18 sq ft) on both floors and walls. This adhesive is suitable for areas where nominal substrate movement is expected, making it ideal for commercial spaces with heavy traffic and potential shocks.

• Features:

  • Ready to use: Simply add water on-site.

  • Fibre-reinforced for added strength.

  • Extended open time for ease of application.

  • High grab strength.

  • Excellent bond and shear strength.

  • High non-sag property.

  • Suitable for both interior and exterior applications.

  • Can sustain minor vibrations in the substrate.

  • Water and heat-resistant.

• Applications:

  • Recommended for both outdoor and indoor applications on floors and walls.

  • Suitable for dry and wet areas.

  • Applicable to a variety of substrates, including cement mortar beds, cement plasters, cement terrazzo, concrete walls and masonry, Mivon Concrete, and tile-on-tile applications.

• Compliance:

  • BIS 15477:2019 - Type 3 T

  • CM/L 9100108600

Please note that this adhesive meets Indian as well as international standards and is an excellent choice for green buildings. If you have any further questions, feel free to ask! 😊

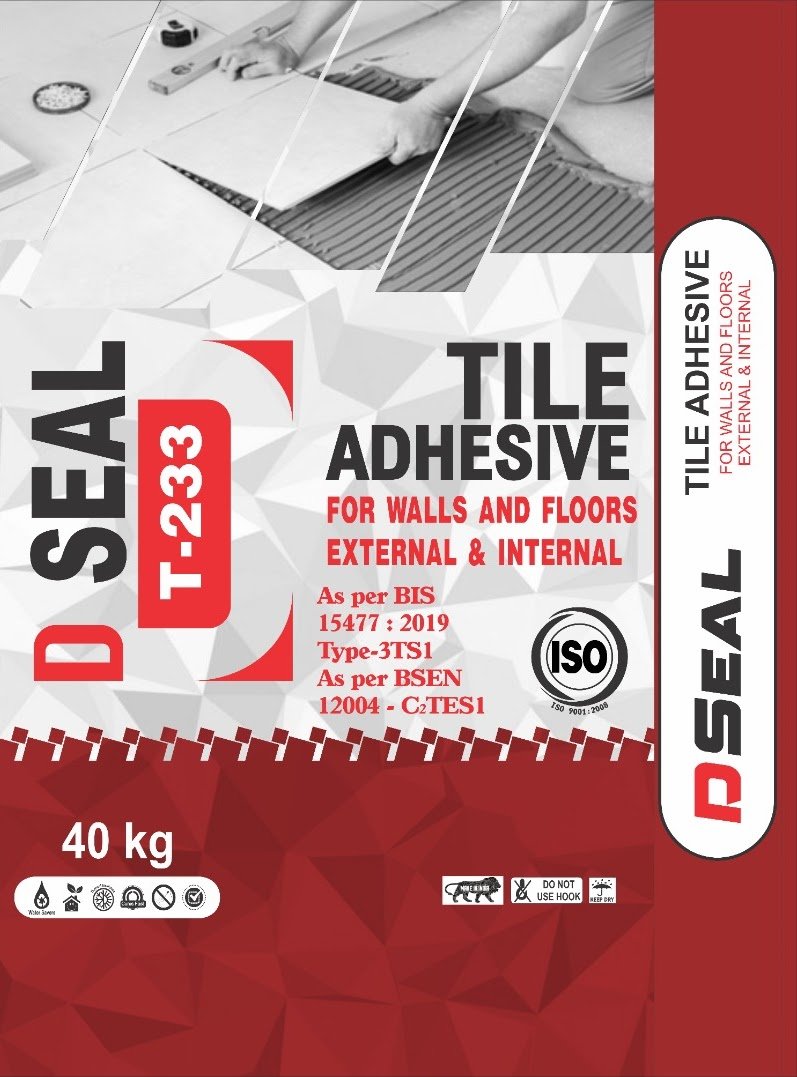

• Product Name: Dseal Tile adhesive T-233 Platinum Hi-Flex Adhesive

• Description: A premium highly flexible adhesive designed for the installation of large-format tiles, stones, slim tiles, and glass mosaics (up to 25 sq ft) on both floors and walls. This adhesive is suitable for both indoor and outdoor areas, especially in critical conditions, higher vertical heights, and water-submerged conditions. It is highly fibre-reinforced with water-repellent properties, making it an excellent choice for difficult applications subjected to deformations and vibrations.

• Features:

  • Highly flexible and deformable adhesive.

  • Fibre-reinforced for added strength.

  • Prolonged workability and extended open time.

  • High grab strength and non-sag property.

  • Excellent bond and shear strength.

  • Can sustain minor vibrations in the substrate.

  • Water, heat, and freeze-thaw resistant.

  • Highly stable for higher vertical heights.

• Applications:

  • Recommended for both outdoor and indoor applications.

  • Suitable for fixing large-format tiles, slim tiles, natural stones, engineered stones, mosaics, porcelain tiles, etc., on floors and walls.

  • Applicable to a variety of substrates, including cement mortar beds, cement plasters, cement terrazzo, concrete walls and masonry, Mivon Concrete, and tile-on-tile applications.

  • An excellent product for water-submerged applications such as swimming pools, fountains, and water bodies.

If you have any further questions or need additional information, feel free to ask! 😊

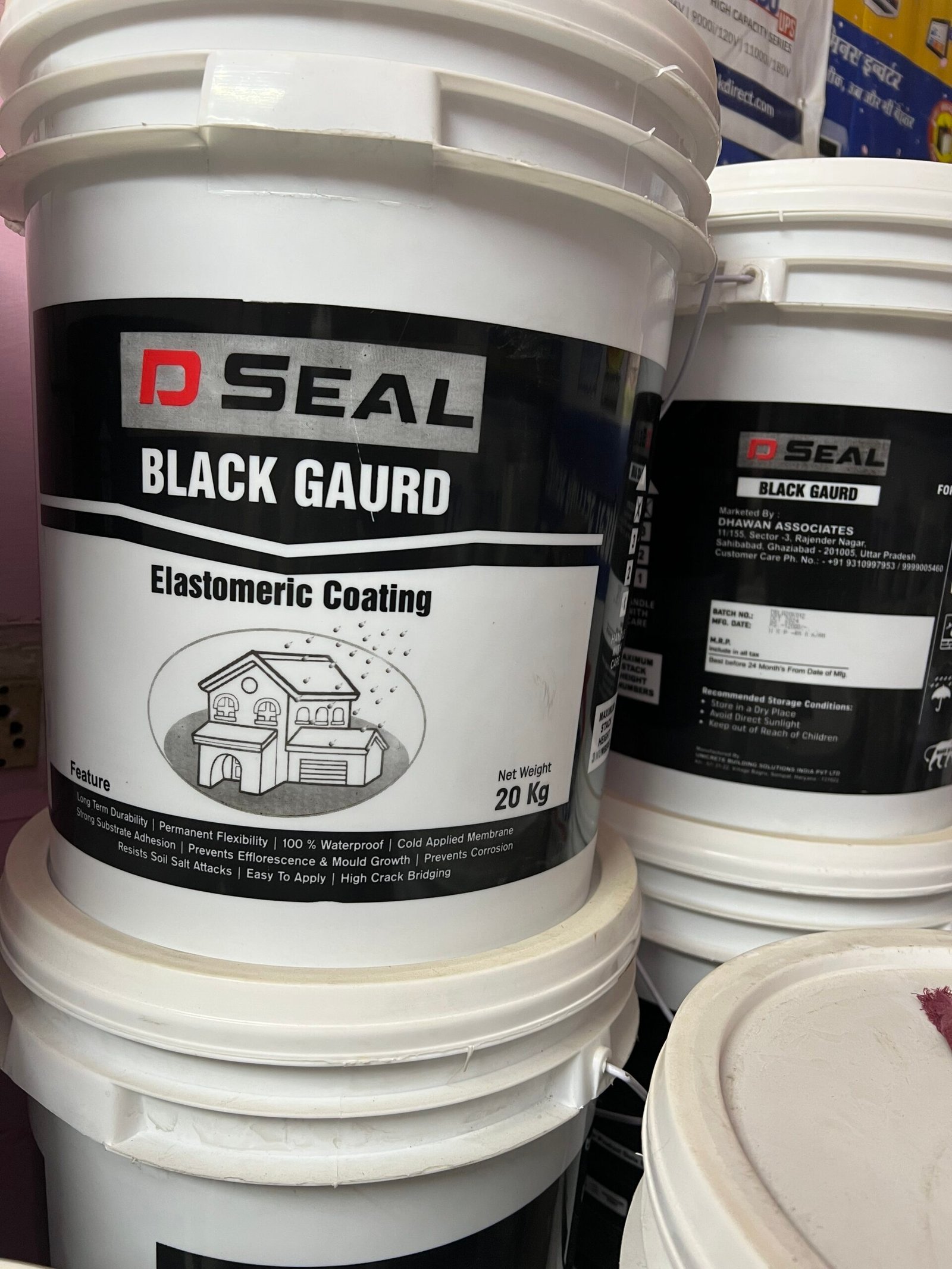

Dseal BLACK SEAL, a highly elastomeric waterproof coating, into technical language while maintaining its uniqueness:

Product Description: Dseal BLACK SEAL is a scientifically formulated blend of synthetic resins, carefully selected minerals, and fillers. This advanced coating serves as a protective and waterproof solution. When applied, it forms a high-performance membrane that dries to an elastic, flexible, and impermeable state.

Applications:

• Waterproofing of concrete and brick foundations, retaining walls, timber structures, and metals.

• Ideal for basements, retaining walls, and sunken portions in buildings.

• Provides waterproofing and protection for underground structures, rafts, concrete elements, columns, and beams.

• Suitable for under-tile waterproofing in bathrooms, terraces, and roofs.

Features & Benefits:

• Cold Applied: This single-component coating is ready to use and does not require open flames (torch) during application.

• Highly Flexible: BLACK SEAL effectively covers hairline cracks, preventing water ingress.

• Elastomeric Properties: Withstands stress caused by thermal expansion and contraction.

• Self-Adapting: Conforms to irregular deck contours.

• Crack Bridging: Capable of bridging cracks greater than 2mm.

• Very High Elongation: Exhibits elongation properties exceeding 800%.

• Seamless & Impermeable: Forms a joint-free waterproof membrane.

• Durable & Corrosion Resistant: Provides effective protection against tough conditions.

• Excellent Bonding & Adhesion: Ensures strong adhesion to substrates.

• Chloride & Sulphate Resistance: Guards against soil and water ions.

Method of Use:

Surface Preparation:

Before applying Dseal BLACK SEAL, follow these steps for optimal results and to prevent failures:

1. Clean the surface thoroughly to remove dust, foreign matter, loose materials, and contaminants that could affect bonding.

2. Surface cleaning methods include scarifying, grinding, water blasting, sand blasting, or acid washing (use approved methods).

3. Vacuum loose solids and liquids if necessary.

4. Ensure that new flat surfaces (such as sub-base concrete) are reasonably smooth to facilitate coating application and avoid sharp projections.

5. The surface must be completely dry; no water or dampness should be present.

Surface Leveling:

• Fill surface cracks up to 5 mm width with Dseal Crack Aid 35 Paste.

• For cracks wider than 5 mm or separation gaps, use Dseal Latex 705 modified repair mortar or as specified.

• Prepare the repair mortar according to the recommended mix design.

Dseal BLACK SEAL, focusing on the material weight, application process, and technical properties:

Dseal BLACK SEAL, liquid rubber: Highly Elastomeric Waterproof Coating (Continuation)

Material Weight (Kgs):

• Cement: 1 kg

• Silica Sand: 1.5 kg

• Dseal Latex 705 Priming Coat: 0.5 kg

Priming Coat Application:

1. After proper surface preparation and curing of repaired areas, clean the surface thoroughly and maintain it in a saturated surface dry condition.

2. Vacuum cleaning can be done if required to achieve a completely dry surface; moisture should be avoided.

3. Dilute Dseal Black Seal with clean water in a ratio of 2:1 (2 parts Black Seal to 1 part water) and stir thoroughly.

4. Using a brush or roller, apply the primer coat over the surface. Allow the primer coat to dry for 6-8 hours.

5. The primer coat acts as a bonding layer between the elastomeric coating and the treated surface.

Waterproofing Coating Application:

• After the primer coat is completely dried, apply two coats of Dseal Black Seal.

• It is recommended to apply the 2nd coat after the 1st coat is fully cured, usually maintaining a gap of 8 – 10 hours between successive coats of the membrane.

• For better results, use Fibre Mesh Reinforcement embedded into the 1st coat of Black Seal while it is still wet.

• Fiber mesh fabric serves as reinforcement to enhance tensile properties, especially for large area applications.

• Dseal Black Seal can be diluted up to 15% for the 1st coat and up to 10% for the 2nd coat to achieve workability and desired coverage.

• On vertical surfaces or walls, coating should extend up to a minimum height of 300 mm from the flat surfaces.

• Clean all brushes and tools with water immediately after use.

• Alternate coats are applied perpendicular to each previous coat to ensure complete surface coverage.

Technical Properties:

• Appearance: Smooth thick black paste

• Specific Gravity: 0.95 ± 0.10

• Solid Content by Wt. (%): 55 ± 2

• Elongation (%): > 1000%

• Water Vapor Transmission (g/h-m²): 0.46

• Bond Strength: > 0.5 N/mm²

• Tear Resistance (KN/m): 28 ± 10

• Crack Bridging Capacity: > 3 mm

• Permeability: Nil

• Tack Free Time @ 25°C: 10-12 hours

• Drying Time @ 25°C:

  • Primer Coat: Internal

  • Final Coats: Internal

Note: Coverages may vary based on surface porosity and undulations. The mentioned coverages are for reference and calculated under lab trials. Dseal recommends conducting trials on samples to verify coverage for specific applications.

Approximate Coverages:

• Primer Coat: 70 to 80 sq. ft/Kg/Coat after dilution.

• Final Coats:

  • Metallic Surface: 40 – 50 sq. ft/Kg/Coat after dilution.

  • Asbestos & Concrete Surfaces: 30 – 40 sq. ft/Kg/Coat after dilution adjustment.

Precautions & Limitations:

• Follow recommended dosage for desired results.

• Apply Dseal Black Seal within a temperature range of 9°C to 40°C.

• Ensure structurally sound, clean surfaces free of dirt, oil, grease, or curing compounds.

• Even out rough or uneven surfaces for complete bonding.

• Dampen the surface before installation.

• Overlay with a protective screed to achieve the desired slope and thickness.

Note: Follow manufacturer’s instructions and relevant codes for optimal performance.

Pack Size:

Dseal Black Seal is available in 5 Kg, 20 Kg, 50 Kg & 200 kg plastic pails or drums.

Shelf Life & Storage:

• Best before 18 months from the date of manufacture when stored under proper conditions.

• Store in a dry, cool place.

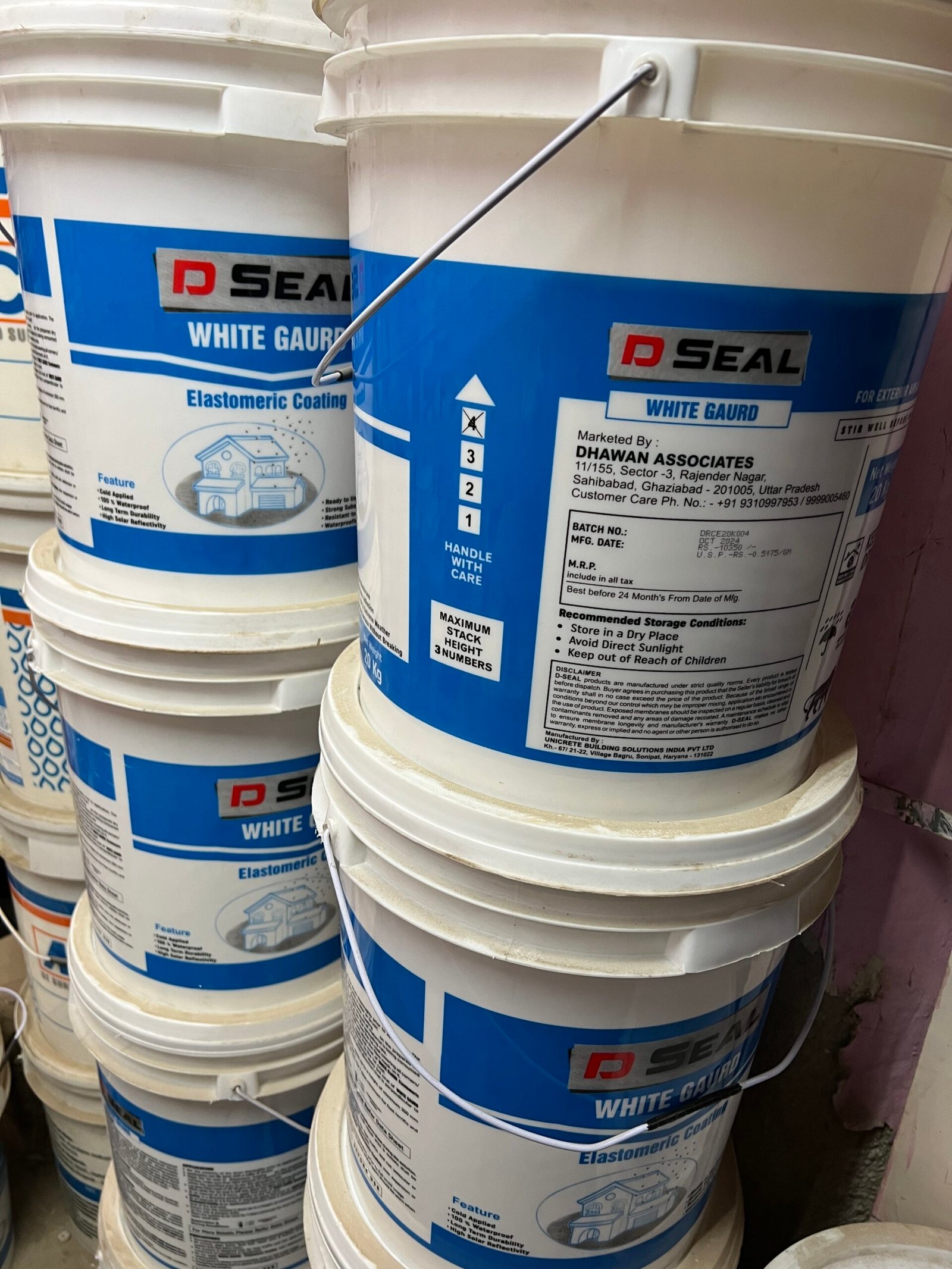

 D-Seal Roof Care – Exceed 625 (White Guard): Dseal elastomeric coating

Product Description: D-Seal Roof Care – Exceed 625 is a single-component, insulating elastomeric waterproof coating designed for roofs. It provides a reliable seal against water and heat, offering both waterproofing and insulation benefits. This monolithic waterproof membrane excels in crack bridging and delivers a durable, weather-protective seal for exposed roof surfaces (both new and old). D-Seal Roof Care – Exceed 625 combines waterproofing and heat reduction in a single product, eliminating the need for additional protective coatings. It is easy to apply using a brush or roller.

Application Areas:

• Waterproofing of building roofs and terraces (flat and slope).

• Suitable for application over existing cementitious waterproofing treatments, including sound brick-bat coba, concrete screeds, etc.

• Ideal for external walls, internal walls, parapets, and chajja's.

• Can be used as a protective coat over existing waterproofing treatments.

• Compatible with various substrates such as cement sheets, metal sheets, and corrugated sheets.

Features & Benefits:

• Economical: Single component, ready-to-use, saving labour.

• Cold Applied: No heating or mixing required; applicable by brush or roller.

• Ease of Application: No need to break old roofs or substrates; can be applied over existing terraces.

• Good Adhesion: Strong bonding to a variety of substrates.

• Crack Bridging: High flexibility bridges hairline cracks effectively.

• Waterproofing: Forms a tough, durable, elastic membrane with over 200% elongation.

• Abrasion Resistant: Suitable for light foot traffic.

• Durability: Withstands heavy rains and extreme weather conditions.

• Elastomeric: Easily handles stress from thermal expansion and contraction.

• Bright White: Heat reflective and UV-resistant top coat.

• Non-Toxic: Environmentally friendly.

• Anti-Carbonation: Excellent barrier against CO2, chloride, and sulfate ions.

Method of Use:

Surface Preparation:

1. Clean the surface thoroughly to remove dust, foreign matter, loose materials, or any contamination.

2. Surface cleaning methods include scarifying, grinding, water blasting, sand blasting, or acid washing (use approved methods).

3. Treat areas affected by algae, moss, or fungal growth with a biocide wash solution.

Surface Leveling:

• Fill surface cracks up to 5 mm width with D-Seal Crack Aid 35 Paste.

• For cracks wider than 5 mm or separation gaps, use D-Seal Latex 705 modified repair mortar or as specified.

• Ensure a minimum roof slope of 1 in 100.

• In existing old terraces with brickbat coba or screeds, check substrate soundness and address any weak areas.

• Reinstate the surface with a bond coat slurry mix of D-Seal Latex 705 and cement (1:1 ratio) just before laying the polymer-modified mortar screed.

• Level the surface using polymer-modified mortar mixed with D-Seal Latex 705 (10-15% by weight of cement in a 1:3 cement-sand ratio).

Priming Coat:

• After proper surface preparation and curing of repaired areas, clean the surface well and maintain it in a saturated surface dry condition.

• Dilute D-Seal Roof Care Exceed 625 with clean water (2 parts coating to 1 part water) and stir thoroughly.

• Apply the primer coat using a brush or roller, maintaining a spreading rate of 9 – 10 m²/Litre/Coat.

• Allow the primer coat to dry for 4 - 6 hours.

• The primer coat acts as a bonding layer.

• D-Seal Roof Care – Exceed 625 (White Guard):

Waterproofing Coating Application (New & Old Surfaces):

• Stir the contents in the drum well prior to application.

• The application can be done with a roller or brush.

Application Steps:

1. After the primer coat is completely dried, apply two coats of D-Seal Roof Care Exceed 625. Dseal elastomeric coating

2. Using a brush or roller, apply the 1st coat of D-Seal Roof Care Exceed 625 coating without any dilution over the dried primed surface. Maintain a spreading rate of 2.0 – 2.1 m²/Litre/Coat.

3. After an interval of 6 – 8 hours, apply the 2nd coat of D-Seal Roof Care Exceed 625 coating without any dilution, maintaining the same spreading rate to achieve a dry film thickness (DFT) of about 450 - 500 microns.

4. For better results, embed non-woven fiber mesh fabric into the 1st coat of coating while it is still wet. The non-woven fiber mesh fabric reinforces tensile properties, especially for large area applications.

5. If required for large terrace areas, apply a 3rd coat of D-Seal Roof Care Exceed 625 using the same application rate as before, perpendicular to the 2nd coat.

6. For vertical surfaces, apply two coats of D-Seal Roof Care Exceed 625 or Wet Coat Classic 515 with a forced coverage of maximum 3.0 - 3.5 sq.mt/litre/coat.

7. Ensure that the coating extends up to a minimum height of 300 mm on the side and parapet walls.

8. Clean all brushes and tools with water immediately after use.

9. Alternate coats should be applied perpendicular to each previous coat to ensure complete surface coverage.

Curing:

• Allow the system to air cure for a minimum of 3 days for foot traffic and water pond testing.

• Conduct a ponding test by filling water up to 50 mm height for 72 hours post air curing to ensure a leak-free terrace.

• Ensure curing is complete before laying thermal insulation boards, mechanical protection, and other coverings.

• Note that low temperatures and high atmospheric humidity will slow down the curing rate, and vice versa.

Precautions & Limitations:

• Do not dilute the coating to achieve desired results.

• Avoid applying in direct sunlight or during rains or within 48 hours of expected rain.

• Always apply at pre-specified rates to achieve the recommended DFT for full coverage.

• Apply when the ambient temperature is between 10°C to 35°C.

• Do not apply to flat surfaces with poor drainage or where ponding water will exist.

• Avoid applying D-Seal Roof Care Exceed 625 over expansion or moving joints directly.

• Ensure all surfaces are structurally sound, clean, and free of dirt, oil, grease, concrete sealers, or curing compounds.

• Coat corners, gaps, joints, roof leak repair areas, and outlets with two extra coats as needed.

Note to the Applicator:

• Inspect and clean the coated surface bi-annually to maintain overall reflectivity properties.

• Durability depends on application process, weather conditions, workmanship quality, and total applied coating thickness.

• For large areas exceeding 300 sq.m., consult the D-Seal waterproofing Technical service team.
